Turning Insert >WCGT1.210.5L

Turning Insert

WCGT1.210.5L EDP:122299

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade HTi10
Order Number WCGT020102L
Sales unit 10
Hand L
Stock
Unit of Length I

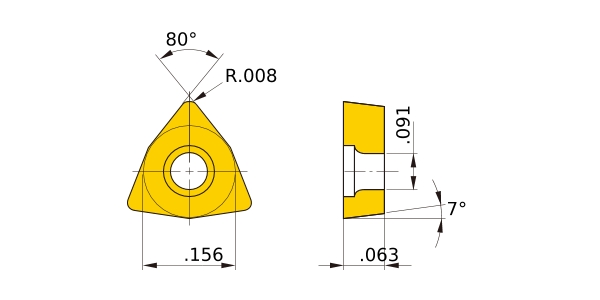

D1 .091
IC .156
EPSR 80°
GAN 15°
AN 7°
LBB .039
LE .083
S .063
RE .008
Breaker L
Classification of Grades
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
WC020102L
CAD
