Turning Insert >WCGT1.211L

Turning Insert

WCGT1.211L EDP:123234

Product Information

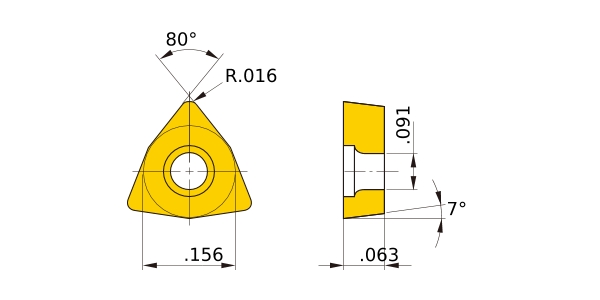

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade HTi10
Order Number WCGT020104L
Sales unit 10
Hand L
Stock
Unit of Length I
D1 .091
IC .156
EPSR 80°
GAN 15°
AN
LBB .039
LE .087
S .063
RE .016
Breaker L
Classification of Grades
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
WC020104L
CAD

3D Detail Model (STP,STL)
CAD data name Download
WC020104L
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
