Turning Insert >WNMG332SH

Turning Insert

WNMG332SH EDP:112083

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade US735
Order Number WNMG060408-SH
Sales unit 10
Hand N
Stock
Unit of Length I

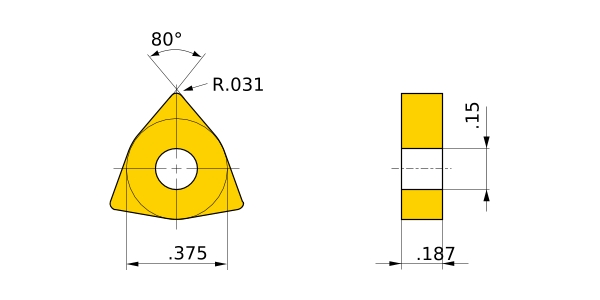

D1 .15
IC .375
EPSR 80°
S .187
RE .031
Breaker SH
Classification of Grades
Coated・Carbide MC6115
Coated・Carbide MC6125
