Turning Insert >DNMG431FY

Turning Insert

DNMG431FY EDP:437561

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX3035
Order Number DNMG150404-FY
Sales unit 10
Hand N
Stock
Unit of Length I

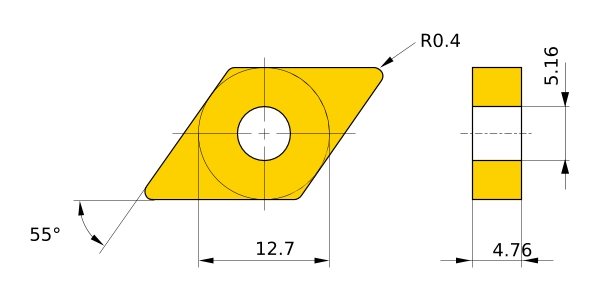

D1 .203
IC .5
EPSR 55°
S .187
RE .016
Breaker FY
Classification of Grades
Coated・Carbide MC6115
Coated・Carbide MC6125
Coated・Carbide MC6135
Coated・Cermet MP3025
Coated・Cermet VP25N
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
