Turning Insert >XCMT220.5SVX

Turning Insert

XCMT220.5SVX EDP:519427

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
Order Number XCMT150302-SVX
Sales unit 10
Hand N
Stock
Unit of Length I

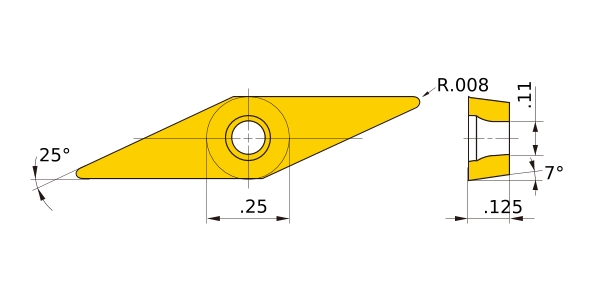

D1 .11
IC .25
EPSR 25°
AN 7°
S .125
RE .008
Breaker SVX
2D Model (DXF)
CAD data name Download
XC150302N
CAD
