Turning Insert >CSVTB10AL

Turning Insert

CSVTB10AL EDP:266634

Product Information

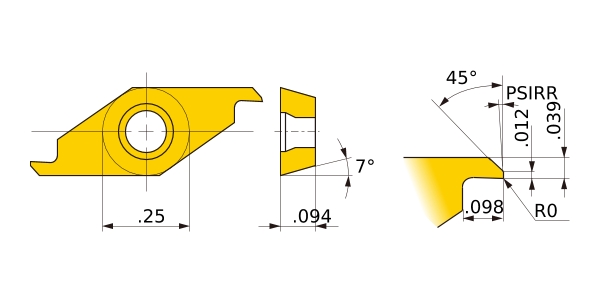

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15KZ
ANSI CSVTB10AL
Sales unit 5
Hand L
Stock
Unit of Length M
IC 6.35
AN 7°
PSIRL 5°
CDX 2.5
CW 1
S 2.38
CF 0.3
APMX 2
REL 0
Tolerance CW:±0.05
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • External Holder
