Turning Insert >CSVTC0750L
CSVTC0750L EDP:266790
The actual product may differ from the displayed image.

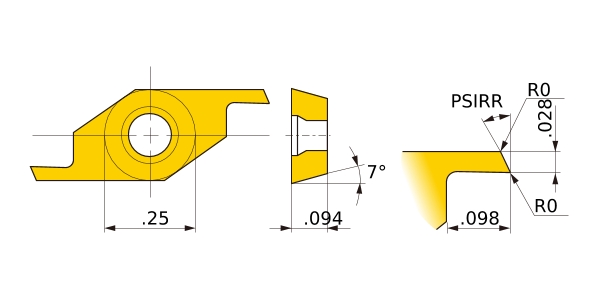

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15KZ |
| ANSI | CSVTC0750L |
| Sales unit | 5 |
| Hand | L |
| Stock |
|
| Unit of Length | I |
| IC | .25 |
| AN | 7° |
| PSIRL | 25° |
| CDX | .098 |
| CW | .028 |
| S | .094 |
| APMX | .079 |
| REL | 0 |
| RER | 0 |
| Tolerance | CW:±.002 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
