Turning Insert >CSVTC0750R-B
CSVTC0750R-B EDP:266811
The actual product may differ from the displayed image.

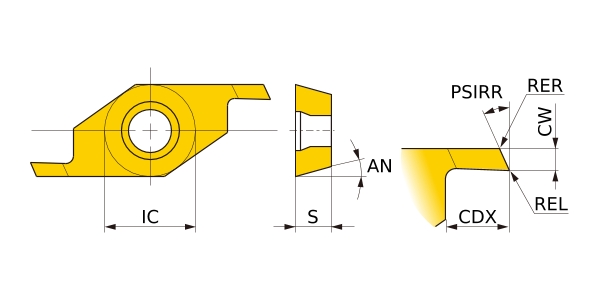

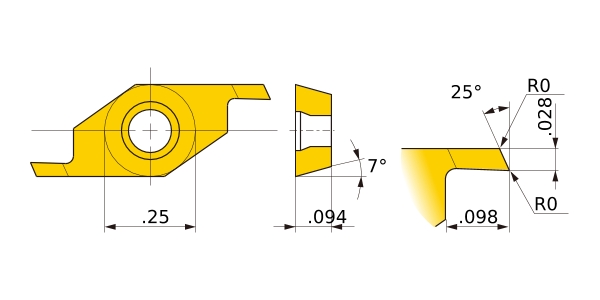

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15KZ |
| ANSI | CSVTC0750R-B |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | M |
| IC | 6.35 |
| AN | 7° |
| PSIRR | 25° |
| CDX | 2.5 |
| CW | 0.7 |
| S | 2.38 |
| APMX | 2 |
| REL | 0 |
| RER | 0 |
| Breaker | B |
| Tolerance | CW:±0.05 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
