Turning Insert >CSVTG07520R
CSVTG07520R EDP:267178
The actual product may differ from the displayed image.
For details, please check the dimensions below.

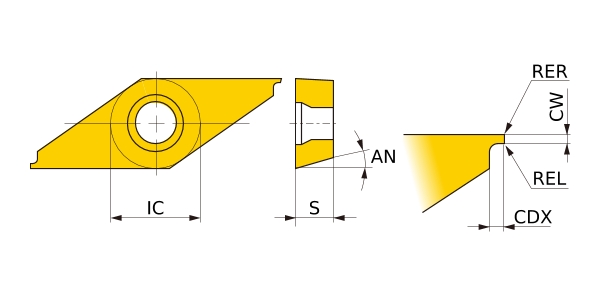

| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15KZ |
| ANSI | CSVTG07520R |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | M |

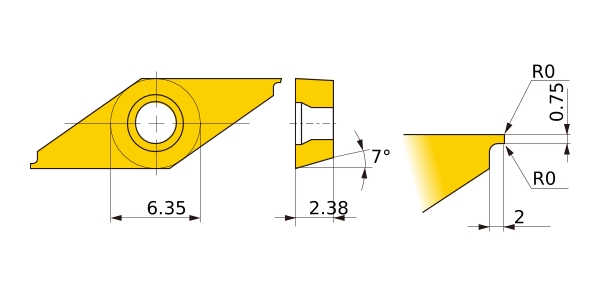

| IC | 6.35 |
| AN | 7° |
| CDX | 2 |
| CW | 0.75 |
| S | 2.38 |
| APMX | 1.4 |
| REL | 0 |
| RER | 0 |
| Tolerance | CW:0.03 - 0 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
