Turning Insert >CTAT10120V5LN-B
CTAT10120V5LN-B EDP:267389

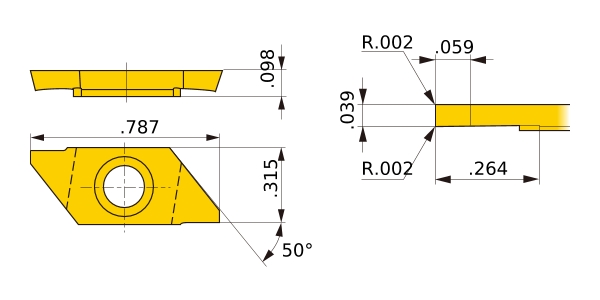

The actual product may differ from the displayed image.
For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | CTAT10120V5LN-B |
| Sales unit | 5 |
| Hand | N |
| Stock |
|
| Unit of Length | I |
| CUTDIA | .472 |
| B9 | 0° |
| EPSR | 50° |
| LBB | .059 |
| CDX | .264 |
| L | .787 |
| W1 | .315 |
| CW | .039 |
| S | .098 |
| REL | .002 |
| RER | .002 |
| Breaker | B |
| Tolerance | CW:±.002 |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | MS6015 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
