Turning Insert >CTAT1512000LL
Turning Insert
CTAT1512000LL EDP:267418
Product Information
The actual product may differ from the displayed image.

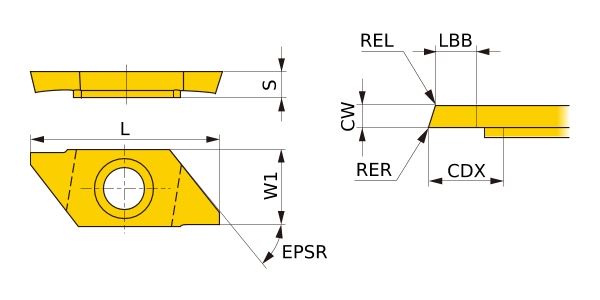

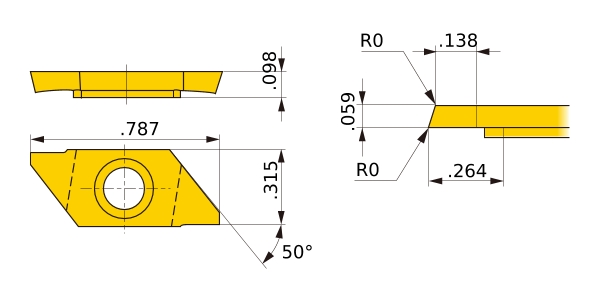

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | CTAT1512000LL |
| Sales unit | 5 |
| Hand | L |
| Stock |
|
| Unit of Length | I |
| CUTDIA | .472 |
| B9 | 20° |
| EPSR | 50° |
| LBB | .138 |
| CDX | .264 |
| L | .787 |
| W1 | .315 |
| CW | .059 |
| S | .098 |
| REL | 0 |
| RER | 0 |
| Tolerance | CW:±.002 |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | UE6110 |
|
| Coated・Carbide | MC5005 |
|
| Coated・Carbide | MC5015 |
|
| Coated・Carbide | MC5105 |
|
| Coated・Carbide | MC5115 |
|
| Coated・Carbide | MC5125 |
|
| Coated・Carbide | MC6115 |
|
| Coated・Carbide | UC5105 |
|
| Coated・Carbide | VP15TF |
|
| Coated・Carbide | UP20M |
|
| Non-coated・Cermet | NX2525 |
|
| Non-coated・Carbide | HTi10 |
|
| Non-coated・Carbide | UTi20T |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
