Turning Insert >CTBT20160V5LL-B
The actual product may differ from the displayed image.

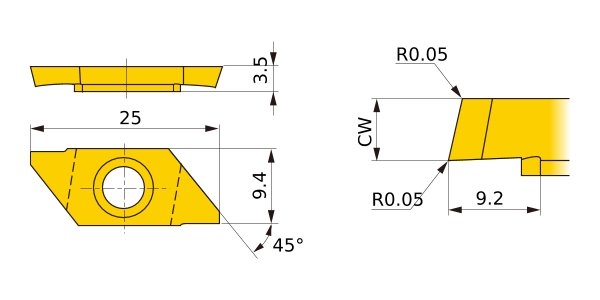

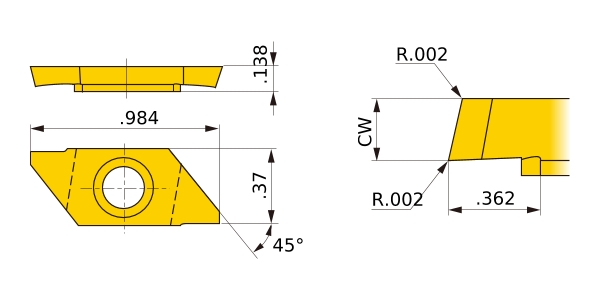

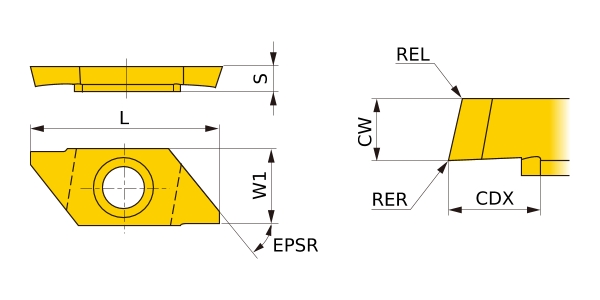

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | VP15TF |
ANSI | CTBT20160V5LL-B |
Sales unit | 5 |
Hand | L |
Stock | |
Unit of Length | I |
CUTDIA | .63 |
B9 | 16° |
EPSR | 45° |
CDX | .362 |
L | .984 |
W1 | .37 |
CW | .079 |
S | .138 |
REL | .002 |
RER | .002 |
Breaker | B |
Tolerance | CW:±.002 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
