Turning Insert >GTAT03306V3L-E

Turning Insert

GTAT03306V3L-E EDP:269114

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI GTAT03306V3L-E
Sales unit 5
Hand L
Stock
Unit of Length I

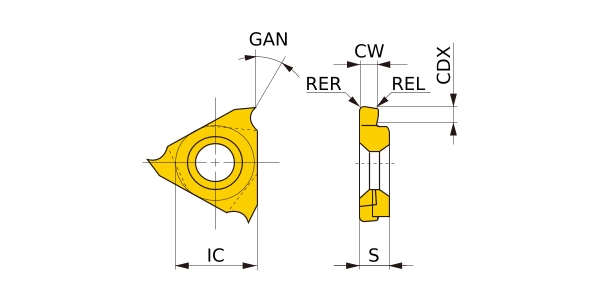

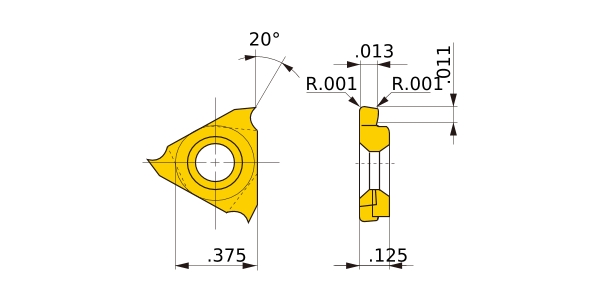

IC .375
GAN 20°
CDX .011
CW .013
S .125
REL .001
RER .001
Breaker E
Tolerance CW:±.001
