Turning Insert >GTAT1302000R-VT
GTAT1302000R-VT EDP:269499
The actual product may differ from the displayed image.

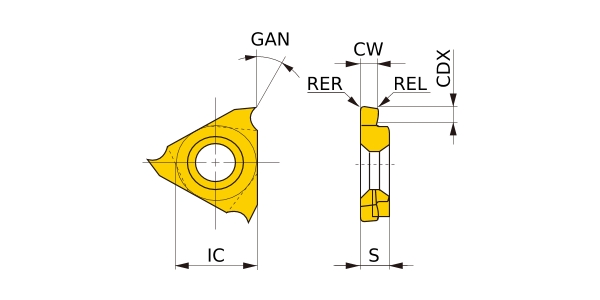

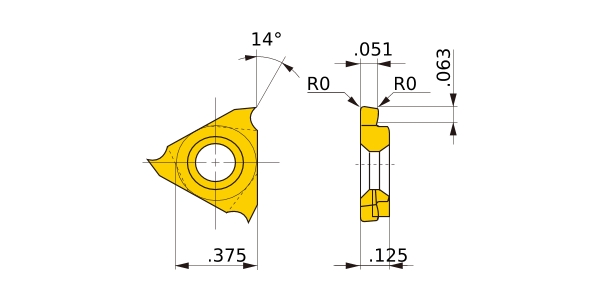

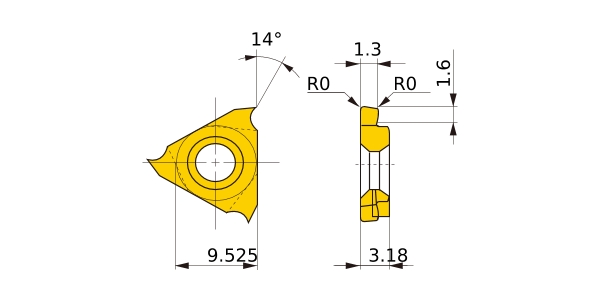

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15KZ |
| ANSI | GTAT1302000R-VT |
| Sales unit | 5 |
| Hand | R |
| Stock |
|
| Unit of Length | I |
| IC | .375 |
| GAN | 14° |
| CDX | .063 |
| CW | .051 |
| S | .125 |
| REL | 0 |
| RER | 0 |
| Breaker | VT |
| Tolerance | CW:±.001 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Grooving Others
