Turning Insert >MLG1020L

Turning Insert

MLG1020L EDP:114795

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UTi20T
ANSI MLG1020L
Sales unit 10
Hand L
Stock

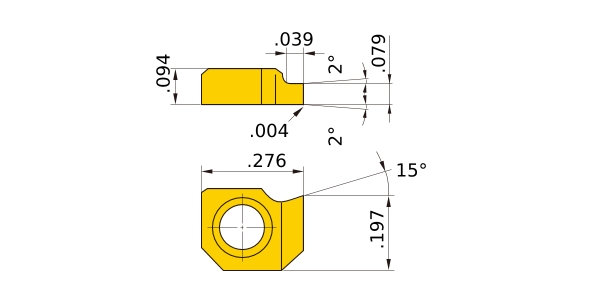

Unit of Length I
GAN 15°
RAL 2°
RAR 2°
CDX .039
L .276
W1 .197
CW .079
S .094
BCH .004
Tolerance CW:±.001
