Turning Insert >MLG2030L

Turning Insert

MLG2030L EDP:294547

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UTi20T
ANSI MLG2030L
Sales unit 10
Hand L
Stock
Unit of Length I

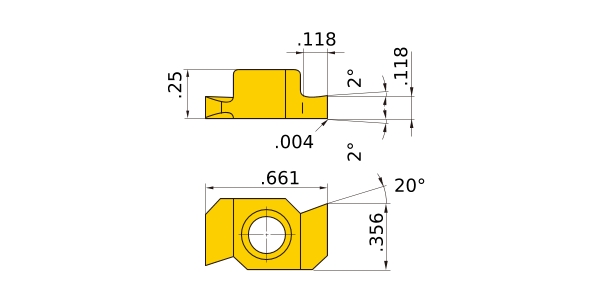

GAN 20°
RAL 2°
RAR 2°
CDX .118
L .661
W1 .356
CW .118
S .25
BCH .004
Tolerance CW:±.001
2D Model (DXF)
CAD data name Download
MLG2030L
CAD
