Turning Insert >GY2M0300F020N-MS
The actual product may differ from the displayed image.

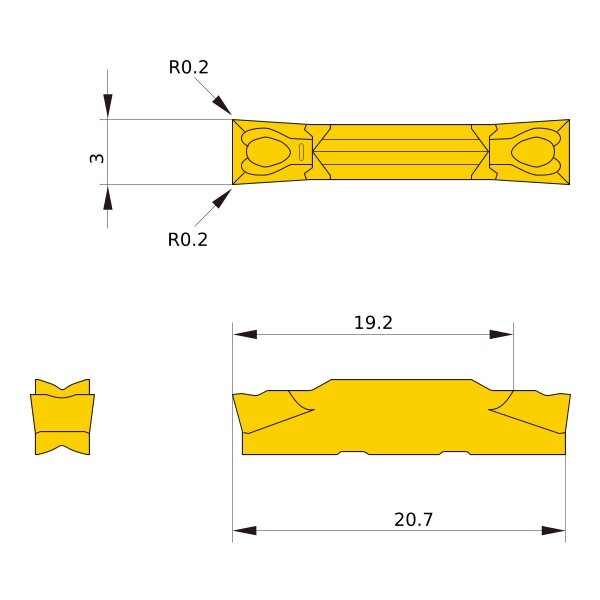

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Cermet |
Grade | NX2525 |
ANSI | GY2M0300F020N-MS |
Sales unit | 10 |
Hand | N |
Stock | ![]() |
Unit of Length | I |
CDX | .756 |
L | .815 |
CW | .118 |
REL | .008 |
RER | .008 |
Breaker | MS |
Tolerance | REL:±.002 RER:±.002 CW:±.0012 L:±.004 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Grooving GY Series
