Turning Insert >TTAT55158V5RL-B

Turning Insert

TTAT55158V5RL-B EDP:269894

Product Information

The actual product may differ from the displayed image.

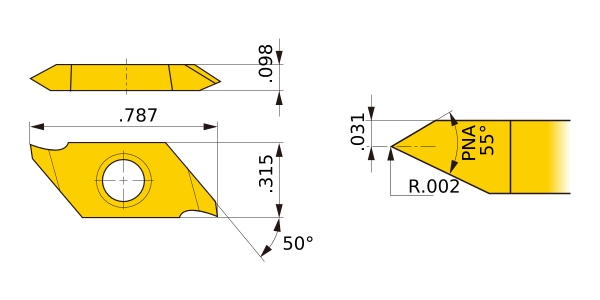

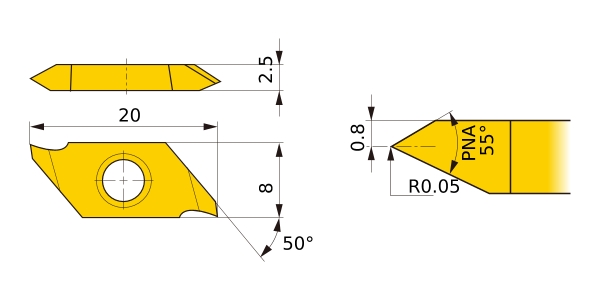

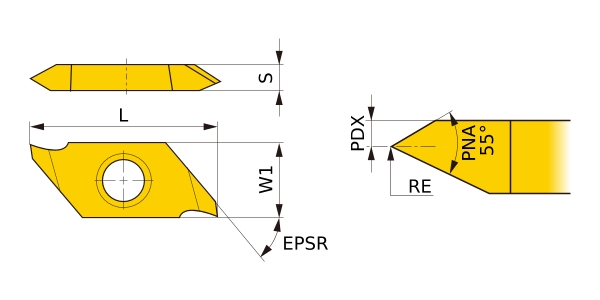

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI TTAT55158V5RL-B
Sales unit 5
Hand L
Stock
Unit of Length I
EPSR 50°
L .787
W1 .315
S .098
PDX .031
RE .002
Breaker B
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Threading Holder
