Turning Insert >TTAT6015001LN-B

Turning Insert

TTAT6015001LN-B EDP:269991

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI TTAT6015001LN-B
Sales unit 5
Hand N
Stock
Unit of Length I

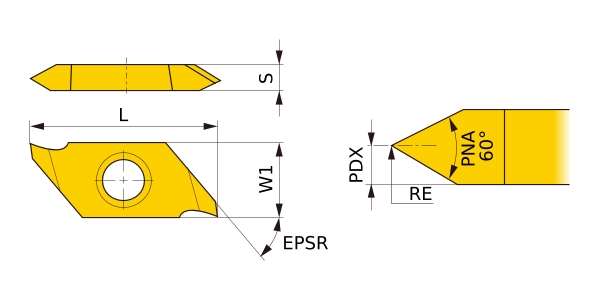

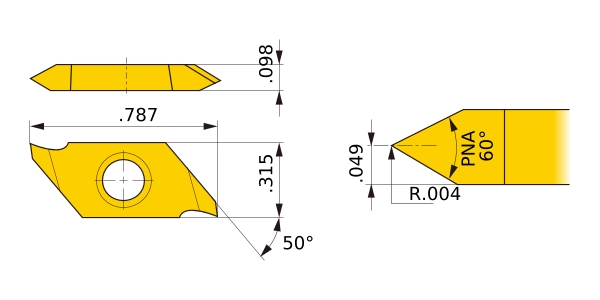

EPSR 50°
L .787
W1 .315
S .098
PDX .049
RE .004
Breaker B
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Threading Holder
