Turning Insert >MMT16IRA60-S

Turning Insert

MMT16IRA60-S EDP:370466

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI MMT16IRA60-S
Sales unit 5
Hand R
Stock
Unit of Length I

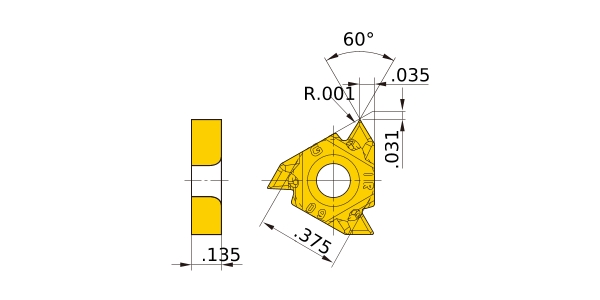

IC .375
PNA 60°
S .135
PDX .035
PDY .031
RE .001
Classification of Grades
Coated・Carbide MP9025
Coated・Carbide VP20RT
2D Model (DXF)
CAD data name Download
MMT16IRA60-S
