Turning Insert >SNMG866GH

Turning Insert

SNMG866GH EDP:105656

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade US735
Order Number SNMG250924-GH
Sales unit 10
Hand N
Stock
Unit of Length I

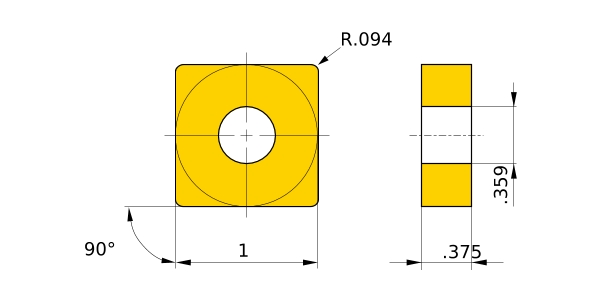

D1 .359
IC 1
EPSR 90°
S .375
RE .094
Breaker GH
2D Model (DXF)
CAD data name Download
SN250924N
CAD
