Turning Insert >TPMH320.5SV

Turning Insert

TPMH320.5SV EDP:619524

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC6025
Order Number TPMH160302-SV
Sales unit 10
Hand N
Stock
Unit of Length I

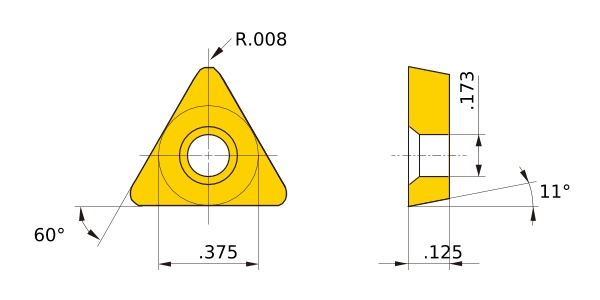

D1 .173
IC .375
EPSR 60°
AN 11°
S .125
RE .008
Breaker SV
Classification of Grades
Coated・Carbide US735
Coated・Carbide VP15TF
Coated・Cermet MP3025
Coated・Cermet VP45N
Non-coated・Cermet NX2525
Non-coated・Cermet NX3035
2D Model (DXF)
CAD data name Download
TP160302N
CAD
