Turning Insert >SNMG544RM

Turning Insert

SNMG544RM EDP:644447

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP7035
Order Number SNMG150616-RM
Sales unit 10
Hand N
Stock

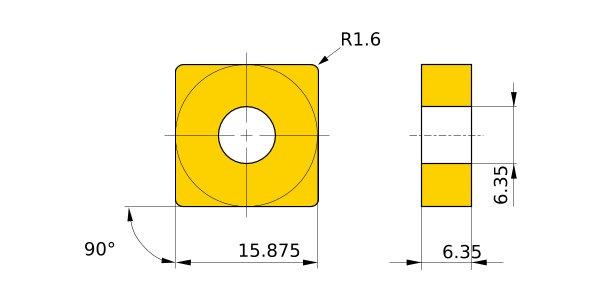

Unit of Length I
D1 .25
IC .625
EPSR 90°
S .25
RE .063
Breaker RM
Classification of Grades
Coated・Carbide MC7015
Coated・Carbide MC7025
2D Model (DXF)
CAD data name Download
SN150616N
