Turning Insert >SNMG432GM

Turning Insert

SNMG432GM EDP:642548

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC7015
Order Number SNMG120408-GM
Sales unit 10
Hand N
Stock
Unit of Length I

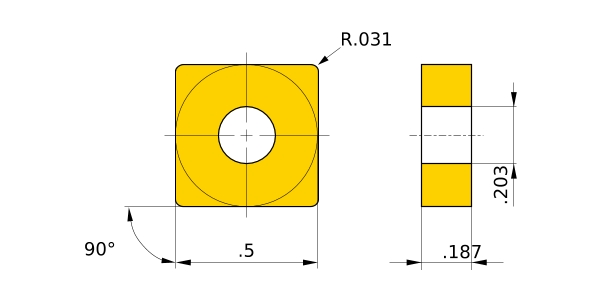

D1 .203
IC .5
EPSR 90°
S .187
RE .031
Breaker GM
Classification of Grades
Coated・Carbide MC7025
Coated・Carbide MP7035
