Turning Insert >WNMG331GM

Turning Insert

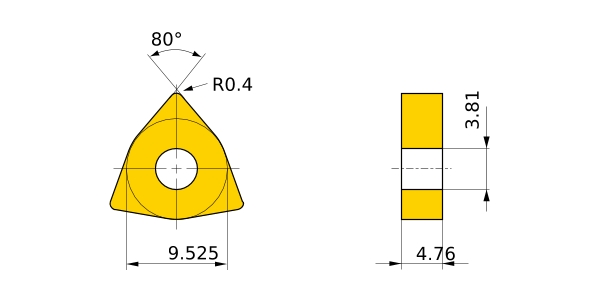

WNMG331GM EDP:642636

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC7015
Order Number WNMG060404-GM
Sales unit 10
Hand N
Stock
Unit of Length I
D1 .15
IC .375
EPSR 80°
S .187
RE .016
Breaker GM
Classification of Grades
Coated・Carbide MC7025
Coated・Carbide MP7035
