Turning Insert >WNMG080408-GM

Turning Insert

WNMG080408-GM EDP:642661

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade MC7015
ANSI WNMG432GM
Sales unit 10
Hand N
Stock
Unit of Length M

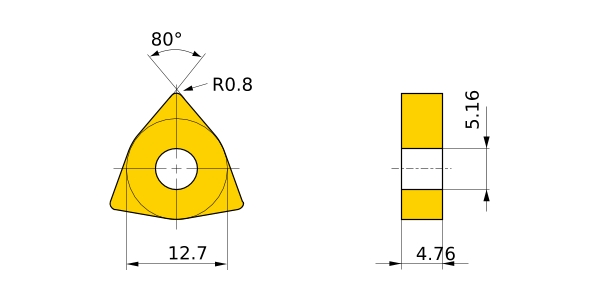

D1 5.16
IC 12.7
EPSR 80°
S 4.76
RE 0.8
Breaker GM
Classification of Grades
Coated・Carbide MC7025
Coated・Carbide MP7035
2D Model (DXF)
CAD data name Download
WN080408N
CAD

3D Detail Model (STP,STL)
CAD data name Download
WN080408N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
