Turning Insert >TCMT16T308-LM

Turning Insert

TCMT16T308-LM EDP:692158

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP7035
ANSI TCMT32.52LM
Sales unit 10
Hand N
Stock
Unit of Length M

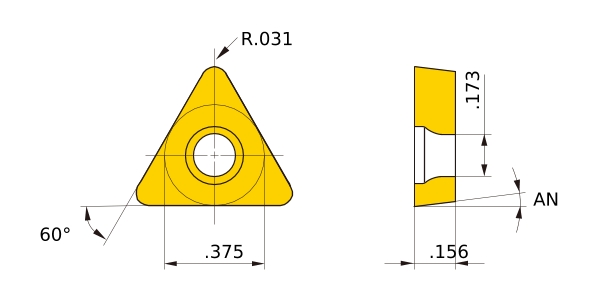

D1 4.4
IC 9.525
EPSR 60°
AN 7°
S 3.97
RE 0.8
Breaker LM
Classification of Grades
Coated・Carbide MC7025
Coated・Carbide MC7115
Coated・Carbide MC7125
Coated・Carbide MP7135
Coated・Carbide VP15TF
2D Model (DXF)
CAD data name Download
TC16T308N
CAD
