Turning Insert

SPG421 EDP:617027

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX2525
Order Number SPGN120304
Sales unit 10
Hand N
Stock
Unit of Length I

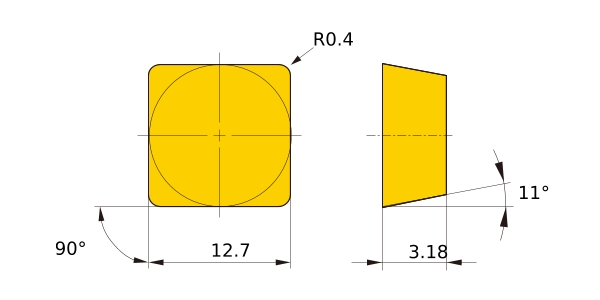

IC .5
EPSR 90°
AN 11°
S .125
RE .016
Breaker flat_top
Classification of Grades
Non-coated・Carbide HTi10
Non-coated・Carbide UTi20T
CBN・PCD MD220
2D Model (DXF)
CAD data name Download
SP120304N
CAD
