Turning Insert >WNMG432RS

Turning Insert

WNMG432RS EDP:803276

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MT9015
Order Number WNMG080408-RS
Sales unit 10
Hand N
Stock
Unit of Length I

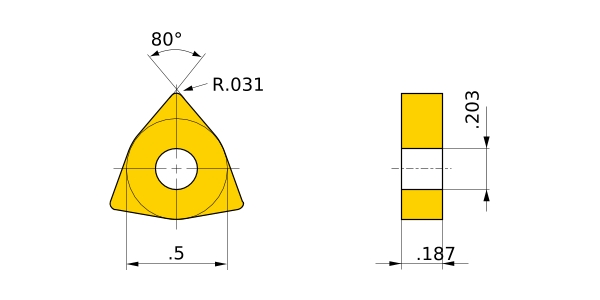

D1 .203
IC .5
EPSR 80°
S .187
RE .031
Breaker RS
Classification of Grades
Coated・Carbide MP9015
Coated・Carbide MP9025
2D Model (DXF)
CAD data name Download
WN080408N
