Turning Insert >GY2G0500H040N-MF
GY2G0500H040N-MF EDP:687068
The actual product may differ from the displayed image.

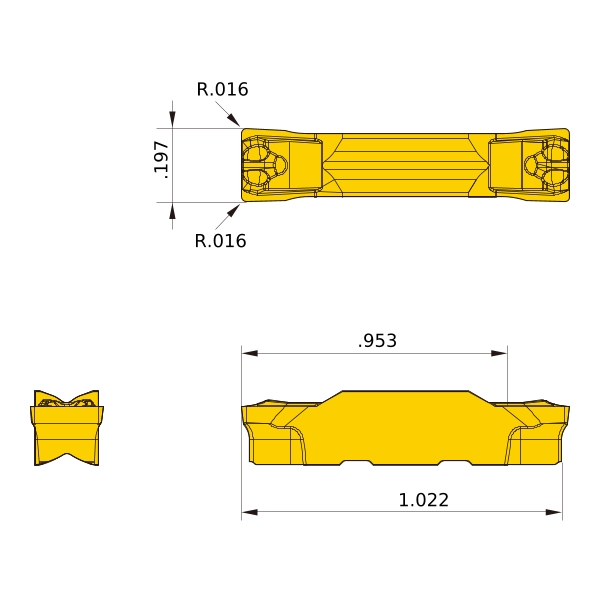

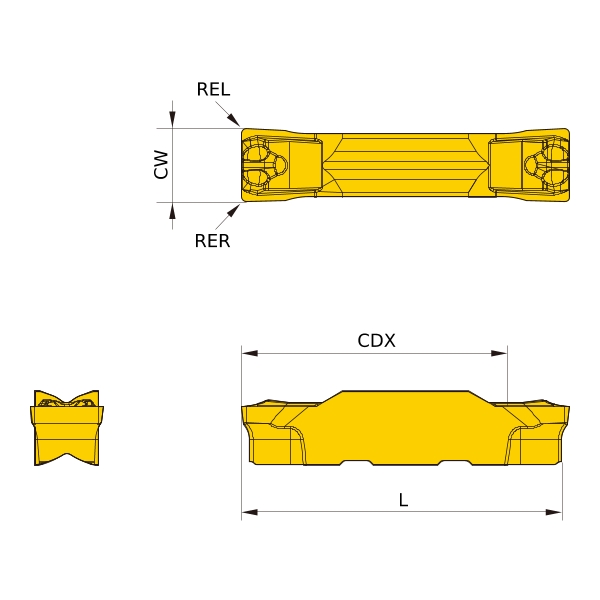

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP10RT |
| ANSI | GY2G0500H040N-MF |
| Sales unit | 10 |
| Hand | N |
| Stock |
|
| Unit of Length | I |
| CDX | .953 |
| L | 1.022 |
| CW | .197 |
| REL | .016 |
| RER | .016 |
| Breaker | MF |
| Tolerance | REL:±.002 RER:±.002 CW:±.0008 L:±.002 |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | VP20RT |
|
| Non-coated・Cermet | NX2525 |
|
| Non-coated・Carbide | RT9010 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Grooving GY Series
