Turning Insert >NP-TPGB160304FS3

Turning Insert

NP-TPGB160304FS3 EDP:811250

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8120
ANSI NP-TPGB321-FS3
Sales unit 1
Hand N
Stock
Unit of Length M

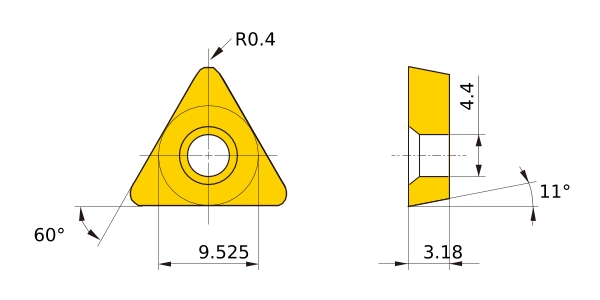

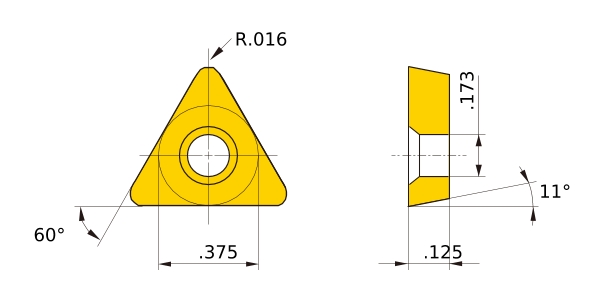

D1 4.4
IC 9.525
EPSR 60°
AN 11°
LE 1.6
S 3.18
RE 0.4
Breaker flat_top
3D Detail Model (STP,STL)
CAD data name Download
TP160304N
