Turning Insert >NP-TPGB322-FS3

Turning Insert

NP-TPGB322-FS3 EDP:811268

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8120
Order Number NP-TPGB160308FS3
Sales unit 1
Hand N
Stock
Unit of Length I

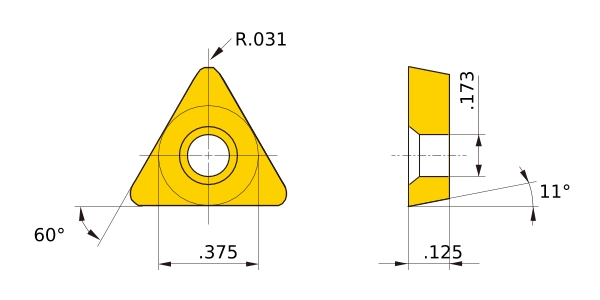

D1 .173
IC .375
EPSR 60°
AN 11°
LE .067
S .125
RE .031
Breaker flat_top
