Turning Insert >GY1M0500H040N-GM
Turning Insert
GY1M0500H040N-GM EDP:10620199
Product Information
The actual product may differ from the displayed image.

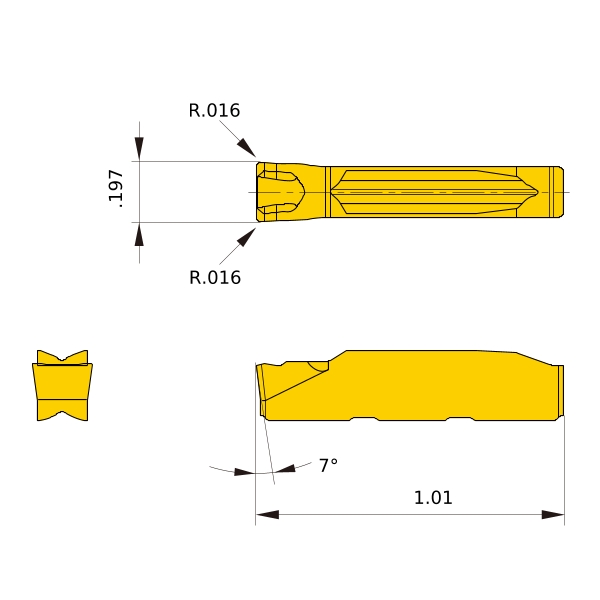

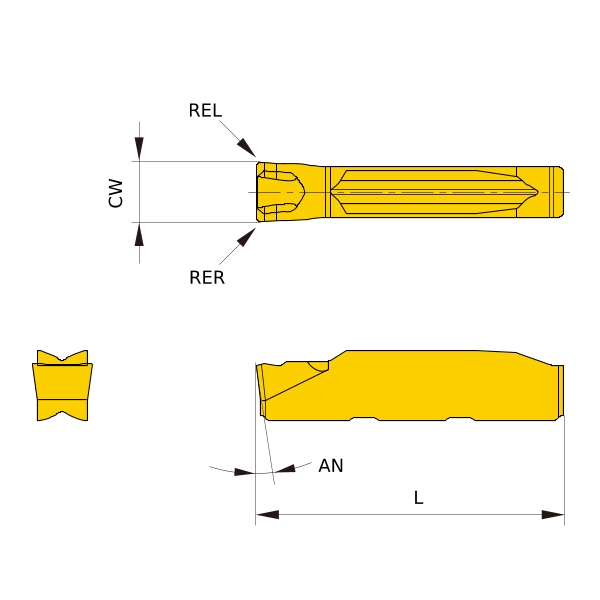

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | MP9015 |
| ANSI | GY1M0500H040N-GM |
| Sales unit | 10 |
| Hand | N |
| Stock |
|
| Unit of Length | I |
| AN | 7° |
| ANL | 0 |
| PSIRL | 0 |
| CDX | 0 |
| LE | 0 |
| L | 1.01 |
| CW | .197 |
| REL | .016 |
| RER | .016 |
| Breaker | GM |
| Tolerance | REL:±.002 RER:±.002 CW:±.0016 |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | MP9025 |
|
| Coated・Carbide | VP10RT |
|
| Coated・Carbide | VP20RT |
|
| Coated・Carbide | MY5015 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
-
Grooving GY Series
