Turning Insert >WNMG32.52MS

Turning Insert

WNMG32.52MS EDP:23609952

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC6115
Order Number WNMG06T308-MS
Sales unit 10
Hand N
Stock

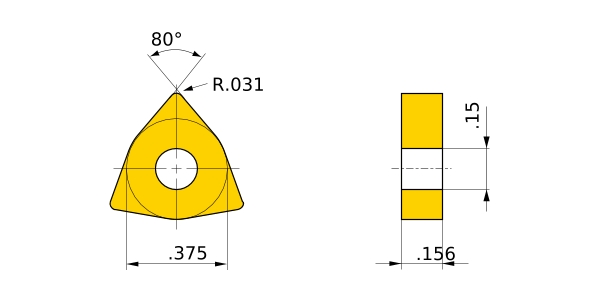

Unit of Length I
D1 .15
IC .375
EPSR 80°
S .156
RE .031
Breaker MS
Classification of Grades
Coated・Carbide MC6125
Coated・Carbide US735
2D Model (DXF)
CAD data name Download
WN06T308N
