Turning Insert >WNMG080404-LK

Turning Insert

WNMG080404-LK EDP:23564114

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade MC5105
ANSI WNMG431LK
Sales unit 10
Hand N
Stock
Unit of Length M

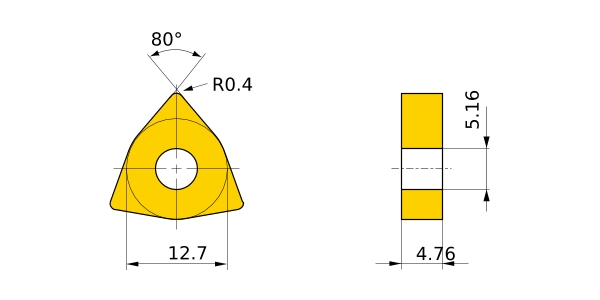

D1 5.16
IC 12.7
EPSR 80°
S 4.76
RE 0.4
Breaker LK
Classification of Grades
Coated・Carbide MC5005
Coated・Carbide MC5015
Coated・Carbide MC5115
Coated・Carbide MC5125
2D Model (DXF)
CAD data name Download
WN080404N
CAD

3D Detail Model (STP,STL)
CAD data name Download
WN080404N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
