Turning Insert >VNMG332FS

Turning Insert

VNMG332FS EDP:23624207

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC6125
Order Number VNMG160408-FS
Sales unit 10
Hand N
Stock
Unit of Length I

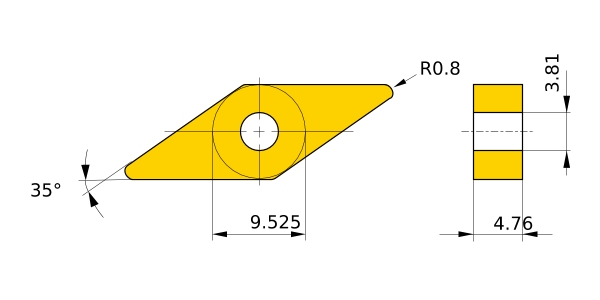

D1 .15
IC .375
EPSR 35°
S .187
RE .031
Breaker FS
Classification of Grades
Coated・Carbide MC6135
Coated・Cermet AP25N
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
VN160408N
CAD
