Fresas(Con placa intercambiable)

ASPX_INCH
（CORTE PARA ALEACIÓN DE TITANIO）

ASPX4UR485H125A050SA EDP:10642887


Forma Serie Geometría Ficha de herramientas Tipo de fresa Característica Estructura
ASPX Acabado en escuadra (longitud larga con agujero en el centro)
  • HSK
  • Alta eficiencia en el mecanizado de aleaciones de titanio.
  • Baja resistencia al corte gracias al uso de placas onduladas.
  • Apto para corte pesado gracias a la rigidez del portaherramientas.
 Con placa intercambiable
ASPX_SHELL Acabado en escuadra (longitud larga con agujero en el centro)
  • Casquillo
  • Alta eficiencia en el mecanizado de aleaciones de titanio.
  • Baja resistencia al corte gracias al uso de placas onduladas.
  • Apto para corte pesado gracias a la rigidez del portaherramientas.
 Con placa intercambiable

Información sobre productos

  • Alta eficiencia en el mecanizado de aleaciones de titanio.
  • Baja resistencia al corte gracias al uso de placas onduladas.
  • Apto para corte pesado gracias a la rigidez del portaherramientas.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I

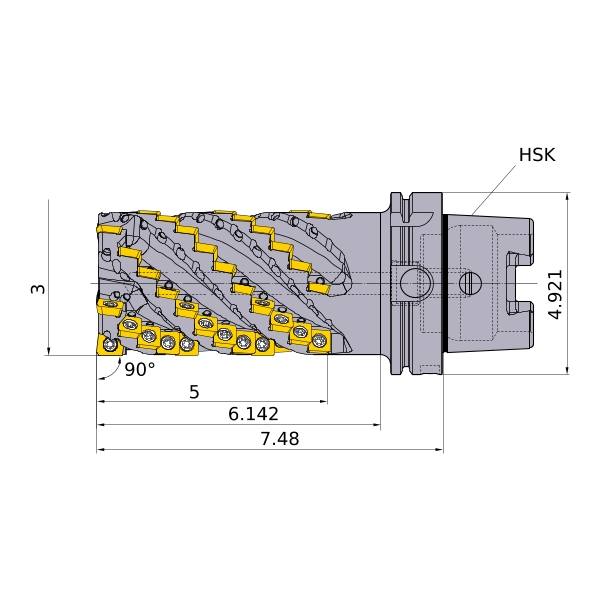

DC 3
DCONMS 4.921
KAPR 90°
LF 7.48
LU 6.142
APMX 5
Cutting item count: CICT 60
Peripheral effective cutting edge count: ZEFP 5
Face effective cutting edge count: ZEFF 5
Modelo 2D (DXF)
Nombre datos CAD Descargar
ASPX4UR485H125A050SA
CAD
