Ranurado Serie GY

GYH50C_INCH


3F1R3F1

Información sobre productos

  • Excelente relación calidad-precio con un portaherramientas compartido.
  • Fijación de placas muy fiable
  • Larga vida de la placa y gran precisión para una amplia variedad de aplicaciones de mecanizado
  • Innovador sistema Tri Lock
  • Estas dimensiones se dan cuando se utiliza una placa de calibrado.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Mano R
Existencia
Unidad de longitud I
CUTDIA 1.181
B .75
LF 5
LH 1.625
CDX .02
WF 1.25
H .75
HF .75
CW .118
WF2 .094
Peripheral effective cutting edge count: ZEFP 1

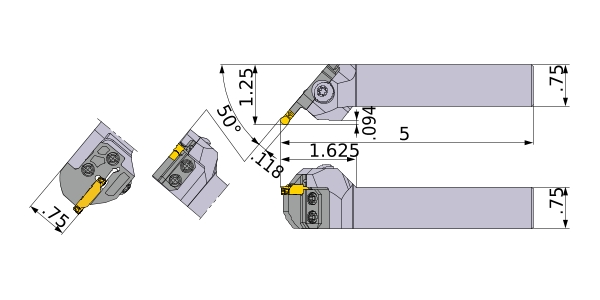

Portaherramientas modular GYHRUS12C50-M20L
Lama modular GYM20LC-F005
Modelo 2D (DXF)
Nombre datos CAD Descargar
3F1R3F1
CAD
