Small tools

S-STUC_INCH


S-STUCL-123 EDP:104473

Información sobre productos

  • Cajeado de dos paredes.
  • Placa positiva de 7º , baja fuerza de corte.
  • Fijación por tornillo

The actual product may differ from the displayed image.

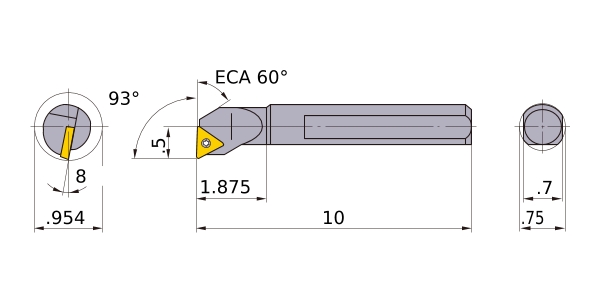

For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S12S-STUCL3
N.º de unidades de pedido 1
Mano L
Existencia
Unidad de longitud I
DMIN .954
DCON .75
KAPR 93°
LF 10
LDRED 1.875
WF .5
H .7
GAMF 8
RE .031
Peripheral effective cutting edge count: ZEFP 1
Insertar número TC__32.5
Modelo 2D (DXF)
Nombre datos CAD Descargar
S-STUCL-123
CAD
