Fresas integrales

VQ4XLB_INCH


VQ4XLBDU109N5D EDP:23986329

Información sobre productos

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Existencia
Unidad de longitud I

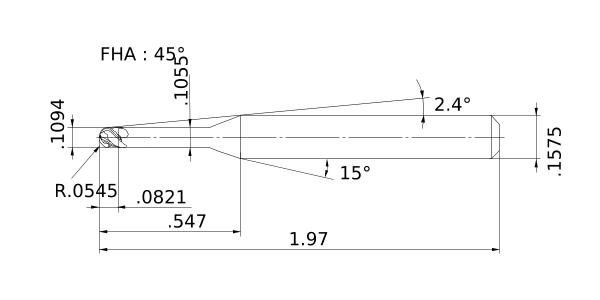

DC .1094
DCONMS .1575
DN .1055
B2 2.4°
BHTA2 15°
LF 1.97
LU .547
APMX .0821
FHA 45°
RE .0545
Peripheral effective cutting edge count: ZEFP 4
Tolerancia radial - -.0003
Tolerancia radial + .0003
Recubrimiento VQ
