Fresas integrales

VQ2XLB_INCH
（PUNTA ESFÉRICA, LONGITUD DE CORTE CORTA,2 HÉLICES, CUELLO LARGO）

VQ2XLBDU035N3D EDP:23985841

Información sobre productos

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Existencia

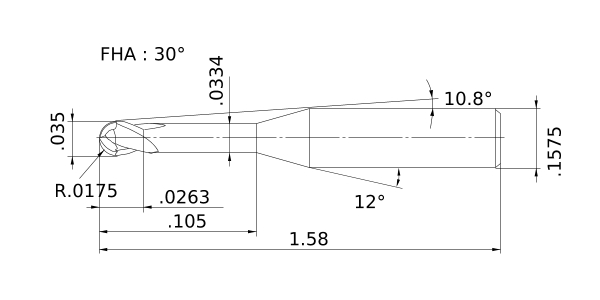

Unidad de longitud I
DC .035
DCONMS .1575
DN .0334
B2 10.8°
BHTA2 12°
LF 1.58
LU .105
APMX .0263
FHA 30°
RE .0175
Peripheral effective cutting edge count: ZEFP 2
Tolerancia radial - -.0002
Tolerancia radial + .0002
Recubrimiento VQ
Modelo 2D (DXF)
Nombre datos CAD Descargar
VQ2XLBDU035N3D
CAD
