Repuestos >GYSR1010JX00-E11

Repuestos

GYSR1010JX00-E11 EDP:809002

Información sobre productos

The actual product may differ from the displayed image.

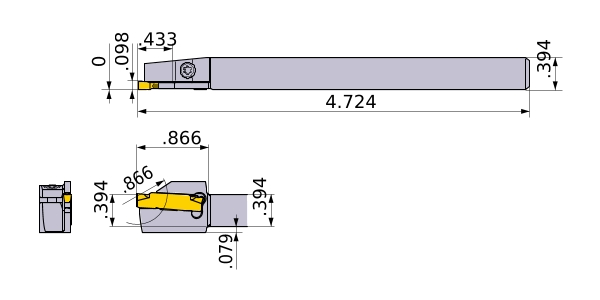

For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
CUTDIA .866
B .394
LF 4.724
LH .866
CDX .433
H .394
HF .394
HBH .079
CW .098
Modelo 2D (DXF)
