CEMENTED CARBIDE

  • UTi grades are available for steel and cast iron. HTi grades are available for non-ferrous and non-metal materials and are also suitable for cast iron.
K Class Grade(WC-Co)
K Class Grade (WC-Co)
P.M Class Grade(WC-TiC-TaC-Co)
P,M Class Grade (WC-TiC-TaC-Co)

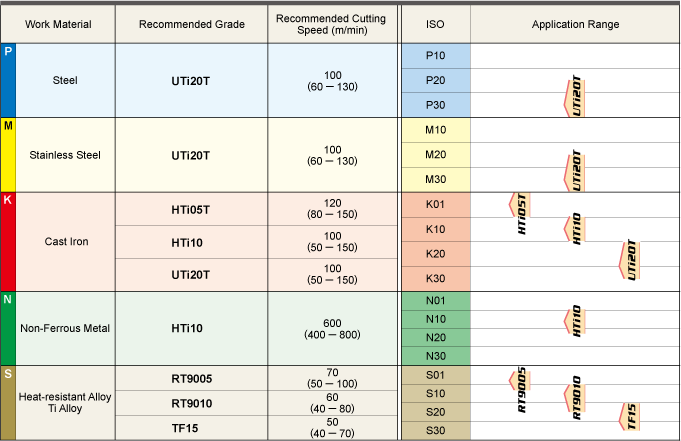

SELECTION STANDARD
TURNING
SELECTION STANDERD

MAIN COMPONENT AND APPLICATION
P series for steel cutting, K series for cast iron cutting and M series for stainless cutting.
MAIN COMPONENT AND APPLICATION
MAIN COMPONENT AND APPLICATION

GRADE CHARACTERISTICS
GRADE CHARACTERISTICS
*1GPa=102kg/mm2,1W/m•K=2.39x10-3cal/cm•sec•°C
GRADE CHARACTERISTICS
