NON-COATED CBN SERIES

HARDENED STEEL MACHINING
Grade Grade Features and Application Main Component
MB8025 For General Purpose Turning, For Continuous to Light Interrupted Cutting
By employing a "Particle-activated Sintering Method", the new sintered CBN technology is recommended for continuous cutting at medium to high speeds.
CBN (Micro Grain) TiN Al2O3
MB835 For Heavy Interrupted Cutting
Improved grade employing micro-grain CBN particles. Excellent fracture resistance for use in heavy interrupted cutting.
CBN (Micro Grain) TiN Al2O3

CUTTING PERFORMANCE

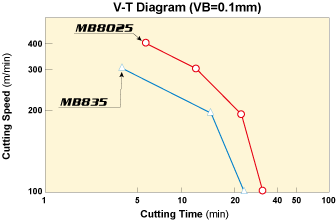

Continuous Cutting
Continuous Cutting
<Cutting Conditions>
Workpiece:
Alloy steel (60HRC)
Feed:
0.1mm/rev
Depth of Cut:
0.1mm
Wet Cutting

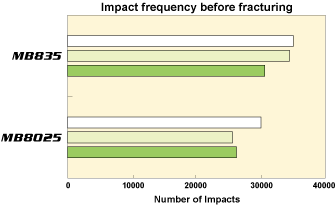

Interrupted Cutting
Interrupted Cutting
<Cutting Conditions>
Workpiece:
Alloy steel (60HRC)
External Interrupted
Cutting 8 Groove
Cutting Speed:
150m/min
Feed:
0.15mm/rev
Depth of Cut:
0.2mm
Dry Cutting


CAST IRON MACHINING
Grade Grade Features and Application Main Component
MB710 For General Cutting
General purpose grade with well balanced wear and fracture resistance.
CBN TiC Al2O3
MB730 For High Speed Cutting
Has the larger CBN content and therefore displays good thermal conductivity. It is suitable for the high temperatures that are generated in high speed cutting.
CBN (High Content)
Co Base Alloy
MBS140 For High Speed Cutting and Roughing of Cast Iron
Highest CBN content, high thermal conductivity. Enables deep depth of cut.
CBN AIN (Solid)
CUTTING PERFORMANCE
Continuous Cutting
Continuous Cutting
<Cutting Conditions of MB710>
Workpiece:
DIN GG25
Insert:
TNGA160408
Feed:
0.1mm/rev
Depth of Cut:
0.15mm
Wet Cutting

<Cutting Conditions of Ceramics>
Workpiece:
DIN GG25
Insert:
TNGA160408
Feed:
0.1mm/rev
Depth of Cut:
0.1mm
Dry Cutting


SINTERED ALLOY MACHINING
MB4020

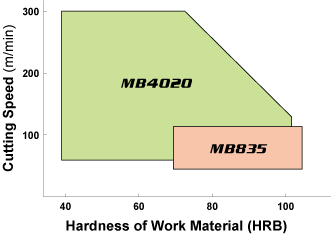

FEATURES AND RECOMMENDED CUTTING CONDITIONS
For General Cutting
High CBN content and a special binder that bonds the CBN particles allows MB4020 to deliver long tool life during the machining of sintered alloys. A general-purpose grade suitable for the machining of various sintered alloys with different hardness and structures and varied workpiece geometries.
For General Cutting
For General Cutting

CUTTING PERFORMANCE
Continuous cutting of high strength sintered alloy
Continuous cutting of high strength sintered alloy
<Cutting Conditions>
Workpiece
High strength sintered alloy
Insert
NP-CNGA120408
Cutting Speed
190m/min
Feed
0.15mm/rev
Depth of Cut
0.1mm
Wet Cutting

Continuous cutting of sintered alloy
Continuous cutting of sintered alloy
<Cutting Conditions>
Workpiece
Sintered alloy
Insert
NP-CNGA120408
Cutting Speed
100m/min
Feed
0.15mm/rev
Depth of Cut
0.1mm
Wet Cutting
