PITCH SELECTION OF PICK FEED

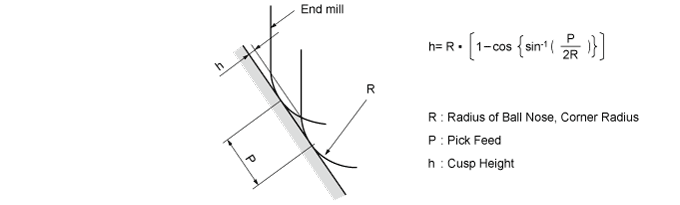

PICK FEED MILLING (CONTOURING) WITH BALL NOSE END MILLS AND END MILLS WITH CORNER RADII
CORNER R OF END MILLS AND CUSP HEIGHT BY PICK FEED
Unit : mm
|
Pitch of Pick Feed (P) |
|
0.1 |
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
0.9 |
1.0 |
0.5 |
0.003 |
0.010 |
0.023 |
0.042 |
0.067 |
0.100 |
— |
— |
— |
— |
1 |
0.001 |
0.005 |
0.011 |
0.020 |
0.032 |
0.046 |
0.063 |
0.083 |
0.107 |
— |
1.5 |
0.001 |
0.003 |
0.008 |
0.013 |
0.021 |
0.030 |
0.041 |
0.054 |
0.069 |
0.086 |
2 |
0.001 |
0.003 |
0.006 |
0.010 |
0.016 |
0.023 |
0.031 |
0.040 |
0.051 |
0.064 |
2.5 |
0.001 |
0.002 |
0.005 |
0.008 |
0.013 |
0.018 |
0.025 |
0.032 |
0.041 |
0.051 |
3 |
|
0.002 |
0.004 |
0.007 |
0.010 |
0.015 |
0.020 |
0.027 |
0.034 |
0.042 |
4 |
|
0.001 |
0.003 |
0.005 |
0.008 |
0.011 |
0.015 |
0.020 |
0.025 |
0.031 |
5 |
|
0.001 |
0.002 |
0.004 |
0.006 |
0.009 |
0.012 |
0.016 |
0.020 |
0.025 |
6 |
|
0.001 |
0.002 |
0.003 |
0.005 |
0.008 |
0.010 |
0.013 |
0.017 |
0.021 |
8 |
|
|
0.001 |
0.003 |
0.004 |
0.006 |
0.008 |
0.010 |
0.013 |
0.016 |
10 |
|
|
0.001 |
0.002 |
0.003 |
0.005 |
0.006 |
0.008 |
0.010 |
0.013 |
12.5 |
|
|
0.001 |
0.002 |
0.003 |
0.004 |
0.005 |
0.006 |
0.008 |
0.010 |
|
Pitch of Pick Feed (P) |
|
1.1 |
1.2 |
1.3 |
1.4 |
1.5 |
1.6 |
1.7 |
1.8 |
1.9 |
2.0 |
0.5 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
1 |
— |
— |
— |
— |
— |
— |
— |
— |
— |
— |
1.5 |
0.104 |
— |
— |
— |
— |
— |
— |
— |
— |
|
2 |
0.077 |
0.092 |
0.109 |
— |
— |
— |
— |
— |
— |
— |
2.5 |
0.061 |
0.073 |
0.086 |
0.100 |
— |
— |
— |
— |
— |
— |
3 |
0.051 |
0.061 |
0.071 |
0.083 |
0.095 |
0.109 |
— |
— |
— |
— |
4 |
0.038 |
0.045 |
0.053 |
0.062 |
0.071 |
0.081 |
0.091 |
0.103 |
— |
— |
5 |
0.030 |
0.036 |
0.042 |
0.049 |
0.057 |
0.064 |
0.073 |
0.082 |
0.091 |
0.101 |
6 |
0.025 |
0.030 |
0.035 |
0.041 |
0.047 |
0.054 |
0.061 |
0.068 |
0.076 |
0.084 |
8 |
0.019 |
0.023 |
0.026 |
0.031 |
0.035 |
0.040 |
0.045 |
0.051 |
0.057 |
0.063 |
10 |
0.015 |
0.018 |
0.021 |
0.025 |
0.028 |
0.032 |
0.036 |
0.041 |
0.045 |
0.050 |
12.5 |
0.012 |
0.014 |
0.017 |
0.020 |
0.023 |
0.026 |
0.029 |
0.032 |
0.036 |
0.040 |
