TOOLING SYSTEM


  CARTRIDGE
　LL ISO type Lever lock type

Type Order Number Stock Geometry Insert Number
PTFN PTFNR10CA11 PTFN
Right hand tool holder shown.		 TNMA
TNMG
TNMM
TNGA
TNGG		 1103__
PTFNL10CA11 1103__
PTFNR12CA16 1604__
PTFNL12CA16 1604__
PTFNR16CA16 1604__
PTFNL16CA16 1604__
PTFNR20CA22 2204__



PTGN PTGNR12CA16 PTGN
Right hand tool holder shown.		 1604__
PTGNL12CA16 1604__
PTGNR16CA16 1604__
PTGNL16CA16 1604__












PSKN PSKNR10CA09 PSKN
Right hand tool holder shown.		 SNMA
SNMG
SNMM
SNGA
SNGG		 0903__
PSKNL10CA09 0903__
PSKNR12CA12 1204__
PSKNL12CA12 1204__
PSKNR16CA12 1204__
PSKNL16CA12 1204__






PCLN PCLNR12CA12 PCLN
Right hand tool holder shown.		 CNMA
CNMG
CNMM
CNGG		 1204__
PCLNL12CA12 1204__
PCLNR16CA12 1204__
PCLNL16CA12 1204__
PCLNR20CA12 1204__

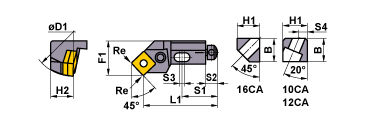

PSSN PSSNR10CA09 PSSN
Right hand tool holder shown.		 SNMA
SNMG
SNMM
SNGA
SNGG		 0903__
PSSNL10CA09 0903__
PSSNR12CA12 1204__
PSSNL12CA12 1204__
PSSNR16CA12 1204__
PSSNL16CA12 1204__






PTTN PTTNR12CA16 PTTN
Right hand tool holder only.		 TNMA
TNMG
TNMM
TNGA
TNGG		 1604__
PTTNR16CA16 1604__


















PSYN PSYNR10CA09 PSYN
Right hand tool holder only.		 SNMA
SNMG
SNMM
SNGA
SNGG		 0903__
PSYNR12CA12 1204__
PSYNR16CA12 1204__
















Stock : Inventory maintained in Japan.
