Drills >MPS1 >MPS1-0300-PC

Drills

MPS1
（Double margin type）

MPS1-0300-PC

Product Information

  • New accumulated AlTiCrN based PVD coating.
  • MPS double margin type for accurate and reliable drilling.
  • All drills with through coolant holes as standard.

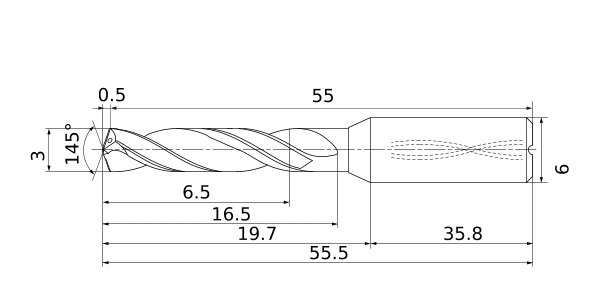

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1021
Stock
Unit of Length M
DC 3
DCON 6
SIG 145°
LF 55
OAL 55.5
LH 19.7
LU 6.5
LCF 16.5
LS 35.8
FHA 27°
ld 2
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0.01
Min. Cutting EdgeDiameter Tolerance -0.002
Type of Coolant Internal
