Drills > MPS1

Drills

MPS1
（Double margin type）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • New accumulated AlTiCrN based PVD coating.
  • MPS double margin type for accurate and reliable drilling.
  • All drills with through coolant holes as standard.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

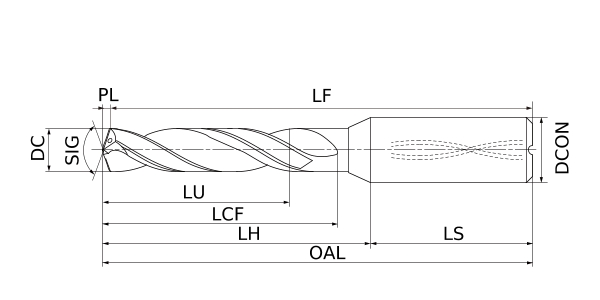

Type1 [Expand]

Type2 [Expand]

Type3 [Expand]

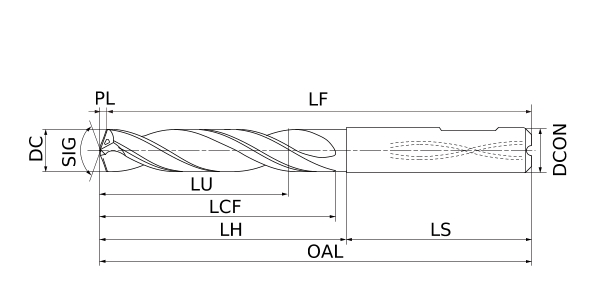

Type4 [Expand]

  1 2 3 4 5 6 7 8 9 10
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
MPS1-0300-L10C Type1 CAD Internal   Carbide DP1021
MPS1-0300-L12C Type1 CAD Internal   Carbide DP1021
MPS1-0300-L15C Type1 CAD Internal   Carbide DP1021
MPS1-0300-L20C Type1 CAD Internal   Carbide DP1021
MPS1-0300-L25C Type1 CAD Internal   Carbide DP1021
MPS1-0300-L30C Type1 CAD Internal   Carbide DP1021
MPS1-0300-L35C Type1 CAD Internal   Carbide DP1021
MPS1-0300-L40C Type1 CAD Internal   Carbide DP1021
MPS1-0300-L8C Type1 CAD Internal   Carbide DP1021
MPS1-0300-PC Type1 CAD Internal   Carbide DP1021
MPS1-0300L-DIN Type3 CAD Internal   Carbide DP1021
MPS1-0300L-DIN-C Type1 CAD Internal   Carbide DP1021
MPS1-0300S-DIN Type3 CAD Internal   Carbide DP1021
MPS1-0300S-DIN-C Type1 CAD Internal   Carbide DP1021
MPS1-0305L-DIN Type3 CAD Internal   Carbide DP1021
MPS1-0305L-DIN-C Type1 CAD Internal   Carbide DP1021
MPS1-0305S-DIN Type3 CAD Internal   Carbide DP1021
MPS1-0305S-DIN-C Type1 CAD Internal   Carbide DP1021
MPS1-0310-L10C Type1 CAD Internal   Carbide DP1021
MPS1-0310-L12C Type1 CAD Internal   Carbide DP1021
D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ld LU BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 L3 LBB CDX L20 LDRED L15 LCF L2 LH L19 LPR L1 L L24 FLGT LF CBDP OAL D4 DCON D2 DCX D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 D8 DAH DAH1 DAH2 DCCB CNT D9 B L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
3 10 30.5 140° 37.5 42.5 79 79.5 6 37 27° 2
3 12 36.5 140° 43.5 48.5 85 85.5 6 37 27° 2
3 15 45.5 140° 52.5 57.5 94 94.5 6 37 27° 2
3 20 60.5 140° 67.5 72.5 109 109.5 6 37 27° 2
3 25 75.5 140° 82.5 87.5 124 124.5 6 37 27° 2
3 30 90.5 140° 97.5 102.5 139 139.5 6 37 27° 2
3 35 105.5 140° 113.5 121.5 158 158.5 6 37 27° 2
3 40 120.5 140° 128.5 136.5 173 173.5 6 37 27° 2
3 8 24.6 135° 33.6 39.6 76 76.6 6 37 30° 2
3 2 6.5 145° 16.5 19.7 55 55.5 6 35.8 27° 2
3 5 20 140° 24.5 28.5 65 65.5 6 37 30° 2
3 5 20 140° 24.5 28.5 65 65.5 6 37 30° 2
3 3 15 140° 19.5 24.5 61 61.5 6 37 30° 2
3 3 15 140° 19.5 24.5 61 61.5 6 37 30° 2
3.05 5 20 140° 24.6 28.6 65 65.6 6 37 30° 2
3.05 5 20 140° 24.6 28.6 65 65.6 6 37 30° 2
3.05 3 15 140° 19.6 24.6 61 61.6 6 37 30° 2
3.05 3 15 140° 19.6 24.6 61 61.6 6 37 30° 2
3.1 10 31.6 140° 44.6 49.6 86 86.6 6 37 27° 2
3.1 12 37.8 140° 51.6 56.6 93 93.6 6 37 27° 2
  1 2 3 4 5 6 7 8 9 10

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
