MPS1-0300-L25C

Product Information

  • New accumulated AlTiCrN based PVD coating.
  • MPS double margin type for accurate and reliable drilling.
  • All drills with through coolant holes as standard.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1021
Stock
Unit of Length M

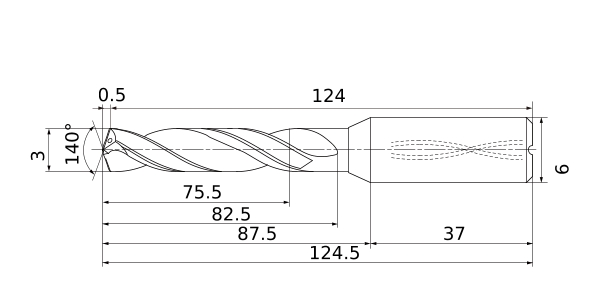

DC 3
DCON 6
SIG 140°
LF 124
OAL 124.5
LH 87.5
LU 75.5
LCF 82.5
LS 37
FHA 27°
ld 25
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.012
Type of Coolant Internal
