  • For gang type tool posts.
  • High rigidity due to desigh of vertical insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

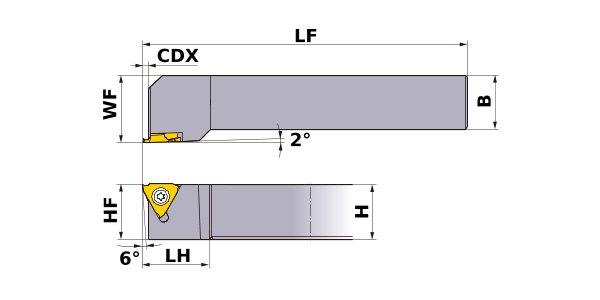

Type1 [Expand]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
GTAHR0808-20 Type1 CAD R
GTAHR0808-20S Type1 CAD R
GTAHR1010-20 Type1 CAD R
GTAHR1010-20S Type1 CAD R
GTAHR1212-20 Type1 CAD R
GTAHR1212-20S Type1 CAD R
GTAHR1616-20 Type1 CAD R
GTAHL0808-20 Type1 CAD L
GTAHL0808-20S Type1 CAD L
GTAHL1010-20 Type1 CAD L
GTAHL1010-20S Type1 CAD L
GTAHL1212-20 Type1 CAD L
GTAHL1212-20S Type1 CAD L
GTAHL1616-20 Type1 CAD L
ap CDX APMX HTB DCN CDI DCINX BDX CWX LBX D1 IC CUTDIA DAXX DMIN DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 D2 DCX D4 DCON D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L1 L L24 FLGT LF CBDP OAL LPR L2 LH L19 LU L3 LBB L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HBH HF W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
2 8 120 15 8 5 8 1
2 8 80 15 8 5 8 1
2 10 120 15 10 3 10 1
2 10 80 15 10 3 10 1
2 12 120 15 12 1 12 1
2 12 80 15 12 1 12 1
2 16 120 15 16 16 1
2 8 120 15 8 5 8 1
2 8 80 15 8 5 8 1
2 10 120 15 10 3 10 1
2 10 80 15 10 3 10 1
2 12 120 15 12 1 12 1
2 12 80 15 12 1 12 1
2 16 120 15 16 16 1
  1

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
